ELECTRIC CHAIN HOIST

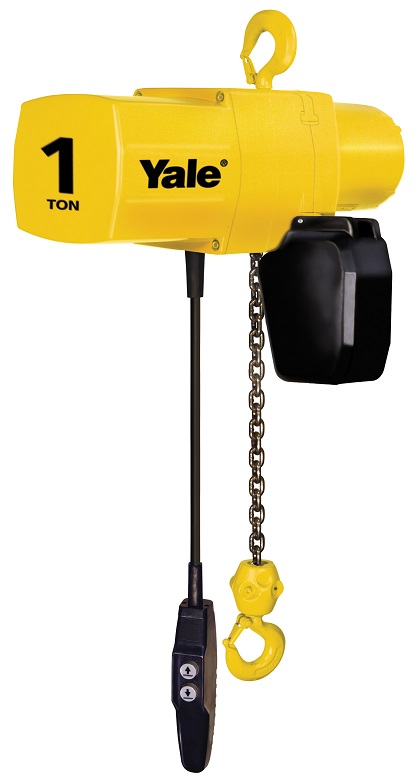

Yale YJL / YJL-V Electric Chain Hoist

   Electric Chain Hoist

   Yale YJL Electric Chain Hoists are compact in size with standard features such as a multiple disc
   motor brake, overload clutch, and adjustable limit switches. The YJL-V is a variable speed version.

   Additional features and benefits include:

• • • • • • • • • • • Voltages - 115/230 - single phase; 230/460, 208, 380, 415, 575 - three phase
                      60 Hertz standard, 50 Hertz available.
                    • Weather Resistant NEMA 3R enclosure.
                    • Increased chain and sheave engagement 25% over hoists with conventional
                      fourpocket sheaves. Provides smoother lifting and reduces chain wear.
                    • Mechanical Overload Protection Device protects hoist, operator, and supporting
                      structures from damaging overloads, chain jamming and reverse phasing.
                    • Limit Switches adjustable to regulate upper and lower load travel.
                    • Multiple Disc Motor Brake heavy-duty design for reliable operation. Direct acting
                      for positive load holding and spotting.
                    • Precision machined alloy steel gears run in oil bath for longer, quieter operation.
                    • Manual and Motorized trolleys in single and dual speed models.
                    • Dual tread trolley wheels fit either flat or tapered I-Beams. Also available in bronze
                      or stainless steel.
                    • Patented track wheels are available.
                    • Lifetime warranty.

Product image above may show optional features and accessories not included on standard models. Consult
with a sales rep or with the product catalog for more information.
